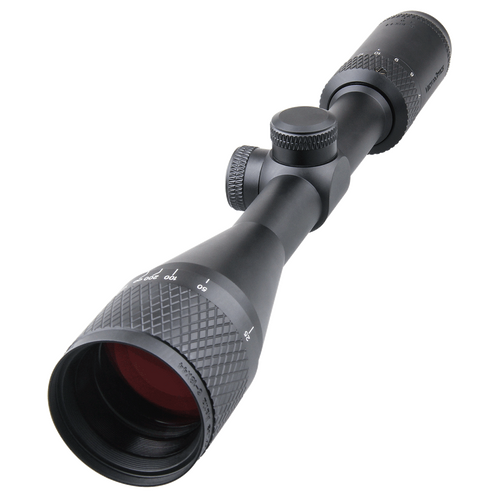

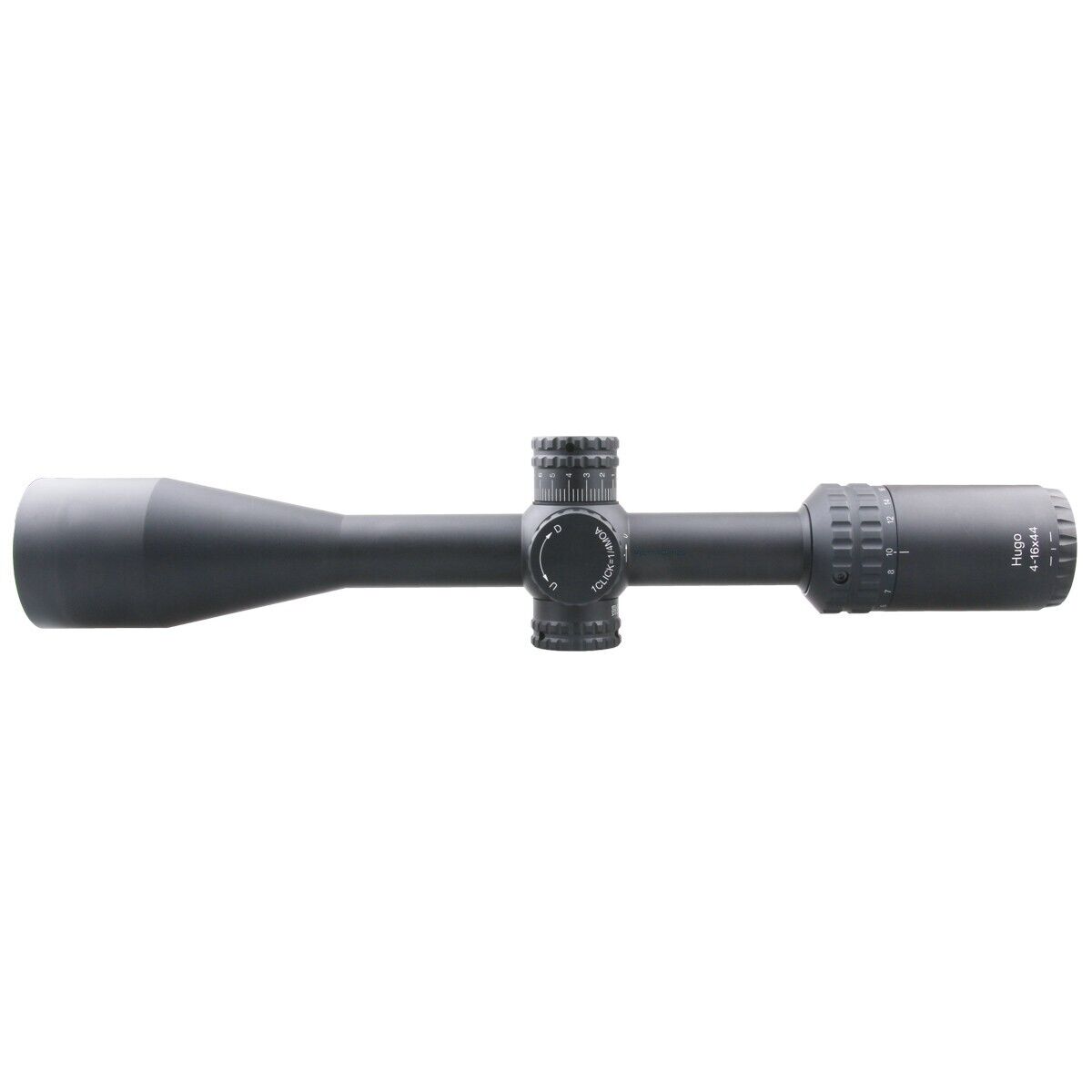

Vector Optics Hugo 4-16x44

VO Hugo Acom Diagram 1

  • Magnification: 4-16x
  • Objective Lens Dia.: 44mm
  • Ocular Lens Dia.: 38mm / 1.5 inch
  • Ocular Lens Length: 60mm / 2.4 inch
  • Exit Pupil: 11-2.7mm
  • Optics Coating: Fully-multi coat
  • Field of View: 21.1-5.3 feet@100 yds
  • Eye Relief: 105--100mm / 4.1-3.9 inch
  • Length: 340mm / 13.4 inch
  • Weight: 625g / 22.0 ounce
  • Tube Dia.: 25.4mm 1“ Monotube

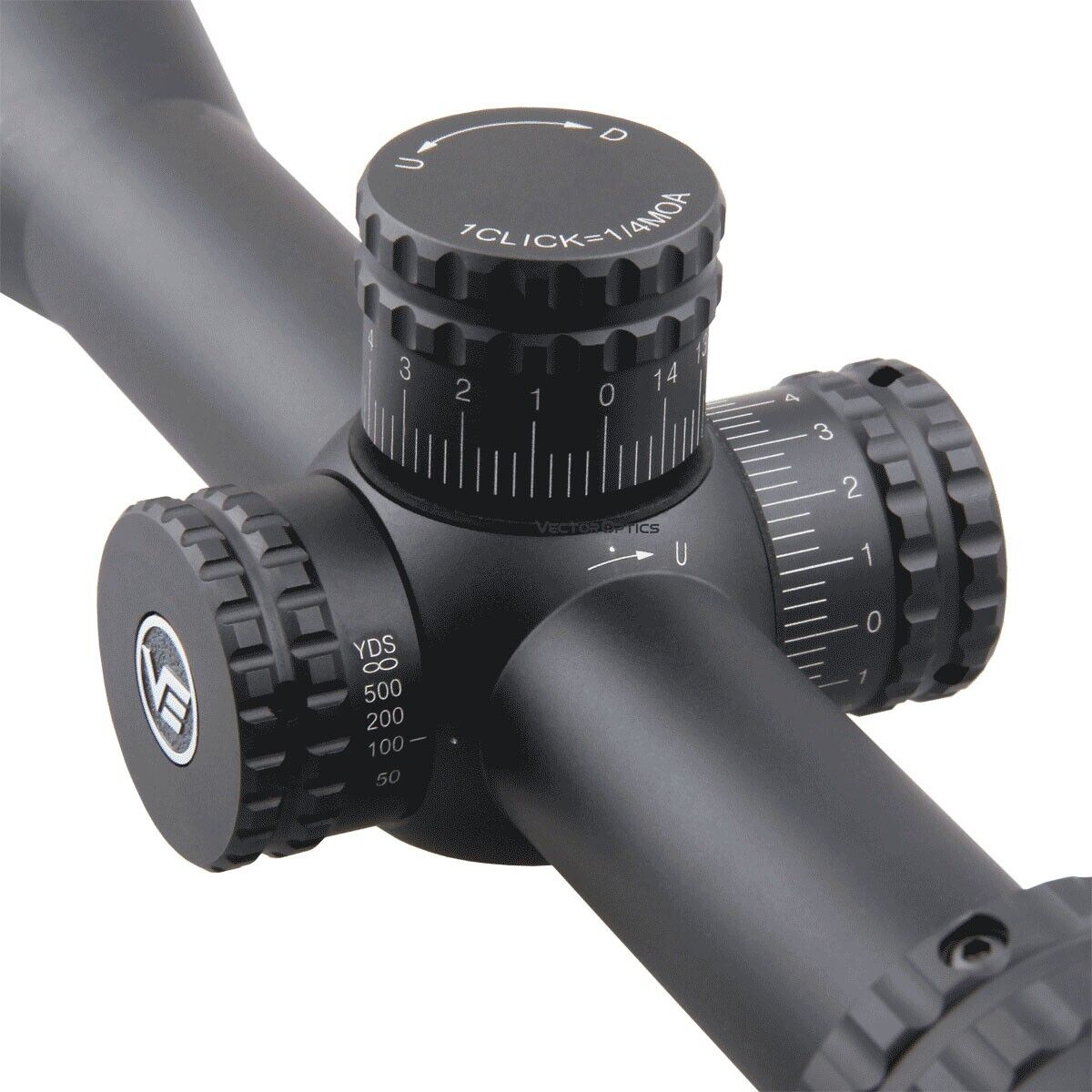

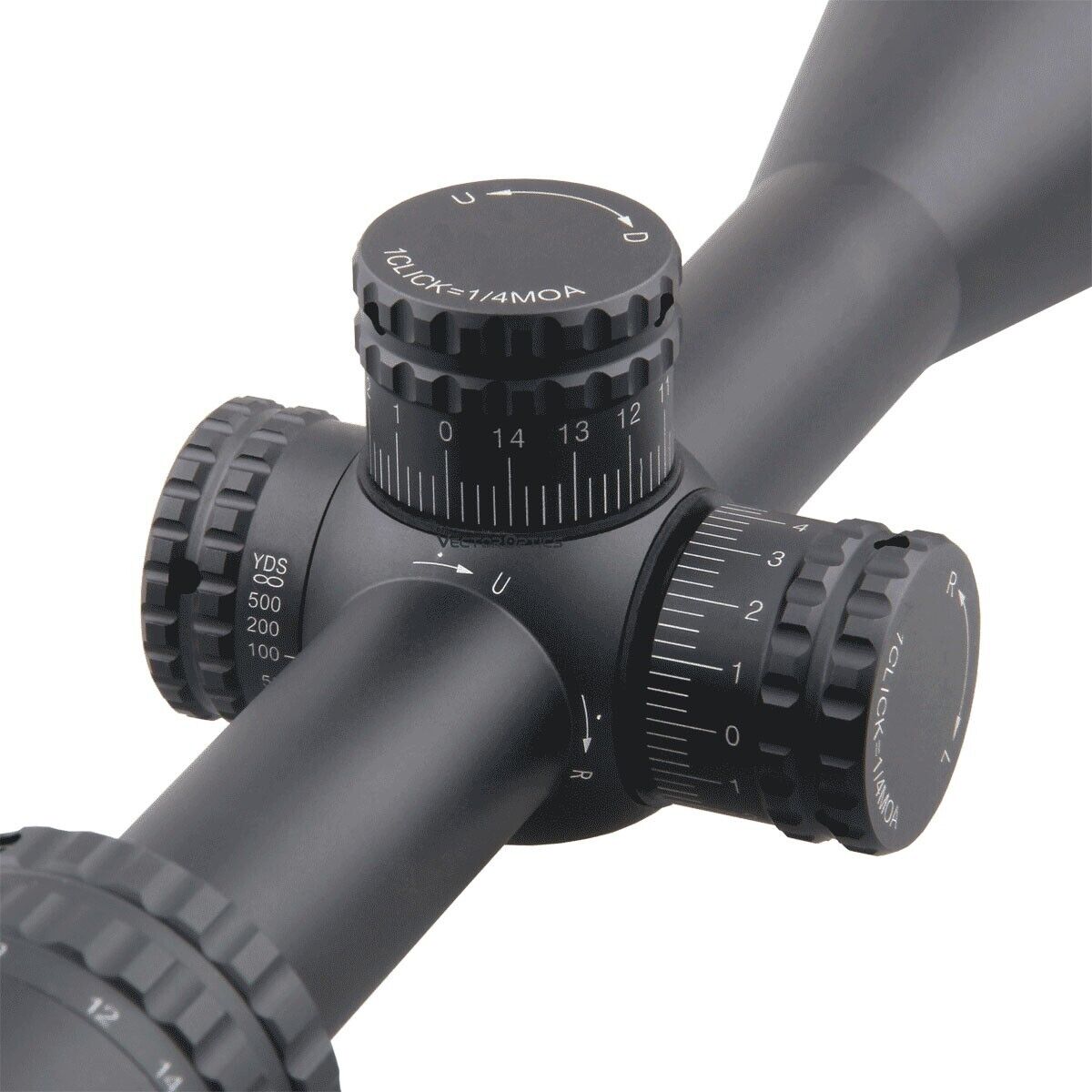

  • Click Value: 1/4 MOA
  • Elevation Range: 50MOA
  • Windage Range: 50MOA
  • Parallax Setting: 10 yards to infinite

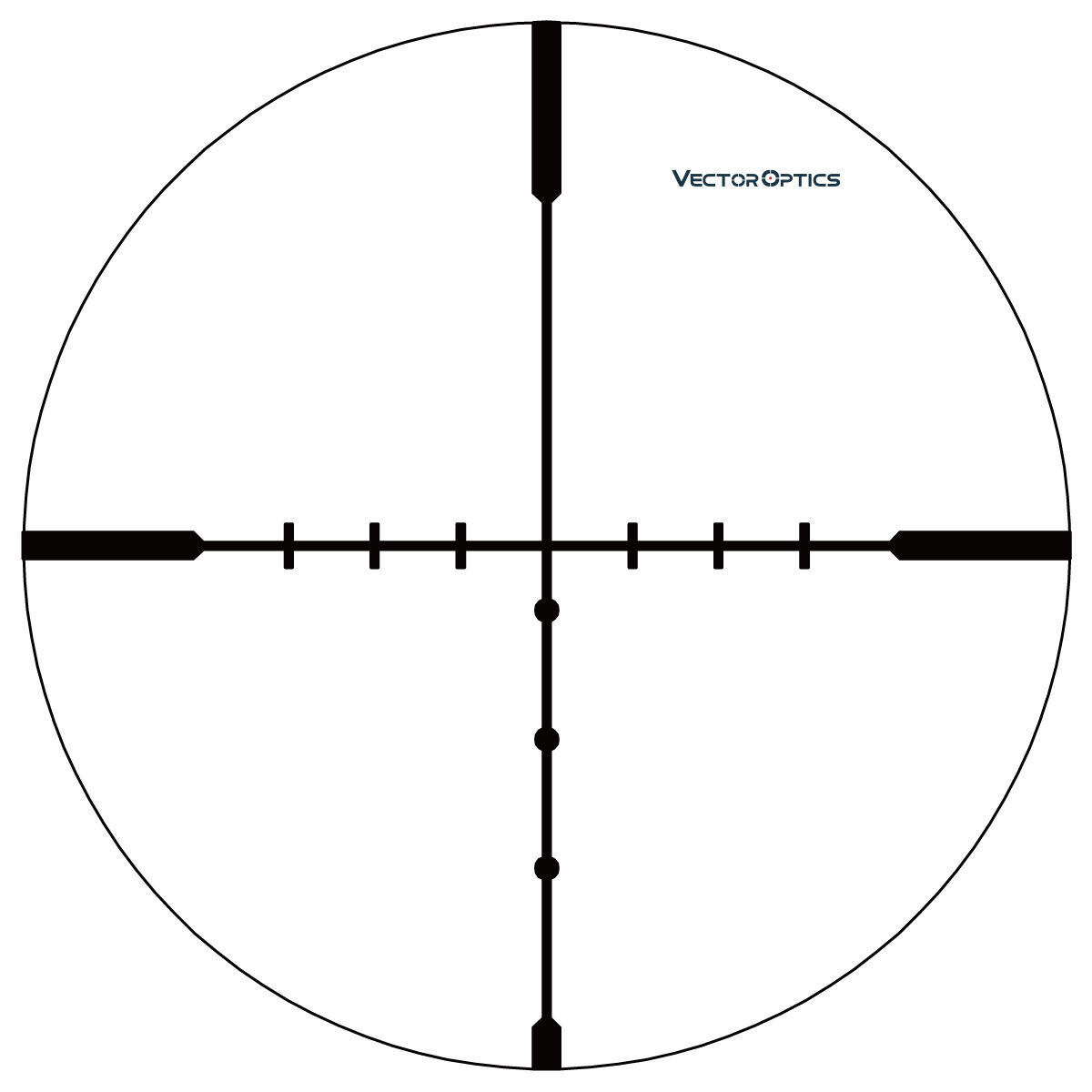

  • Reticle: VOW-10BDC
  • Illumination: None

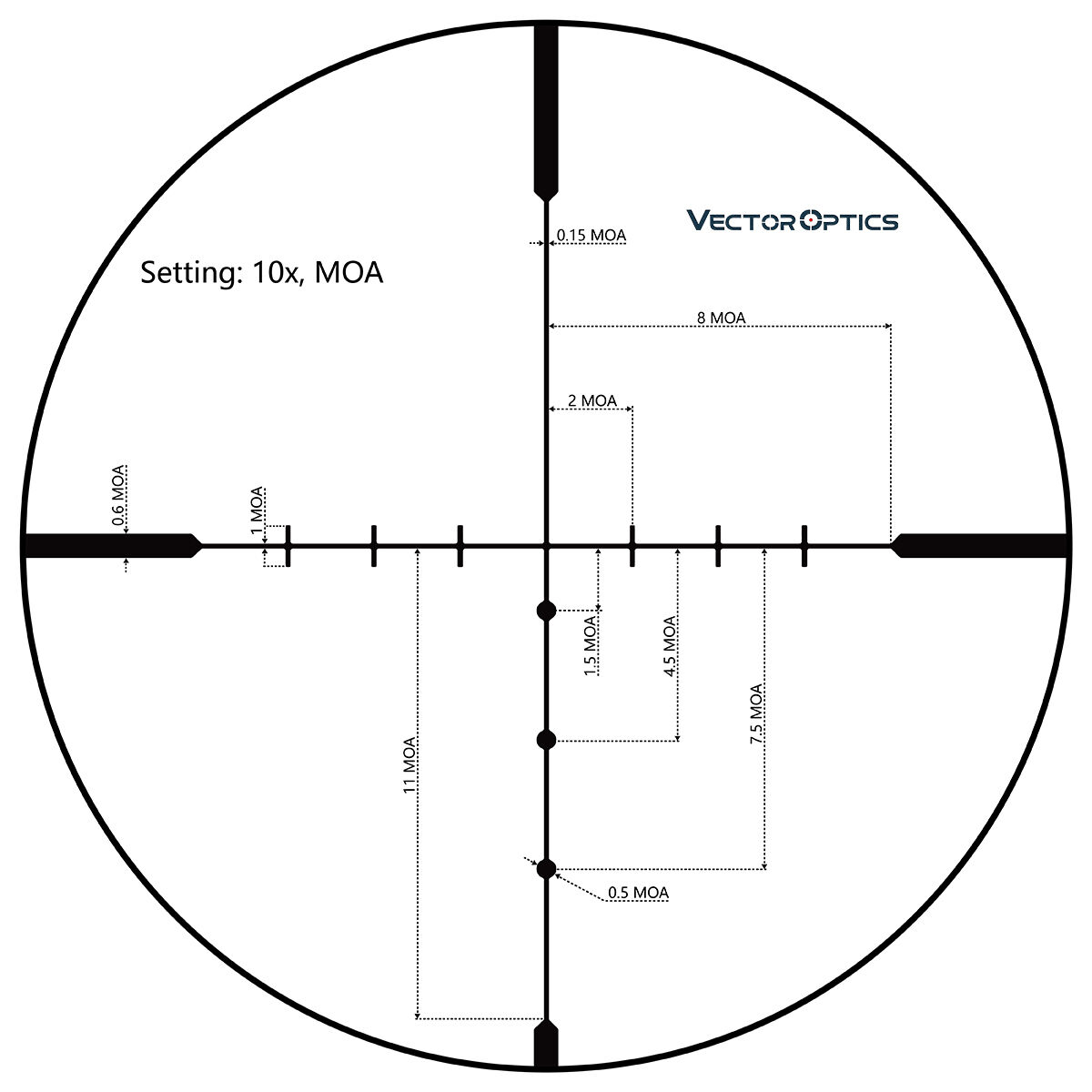

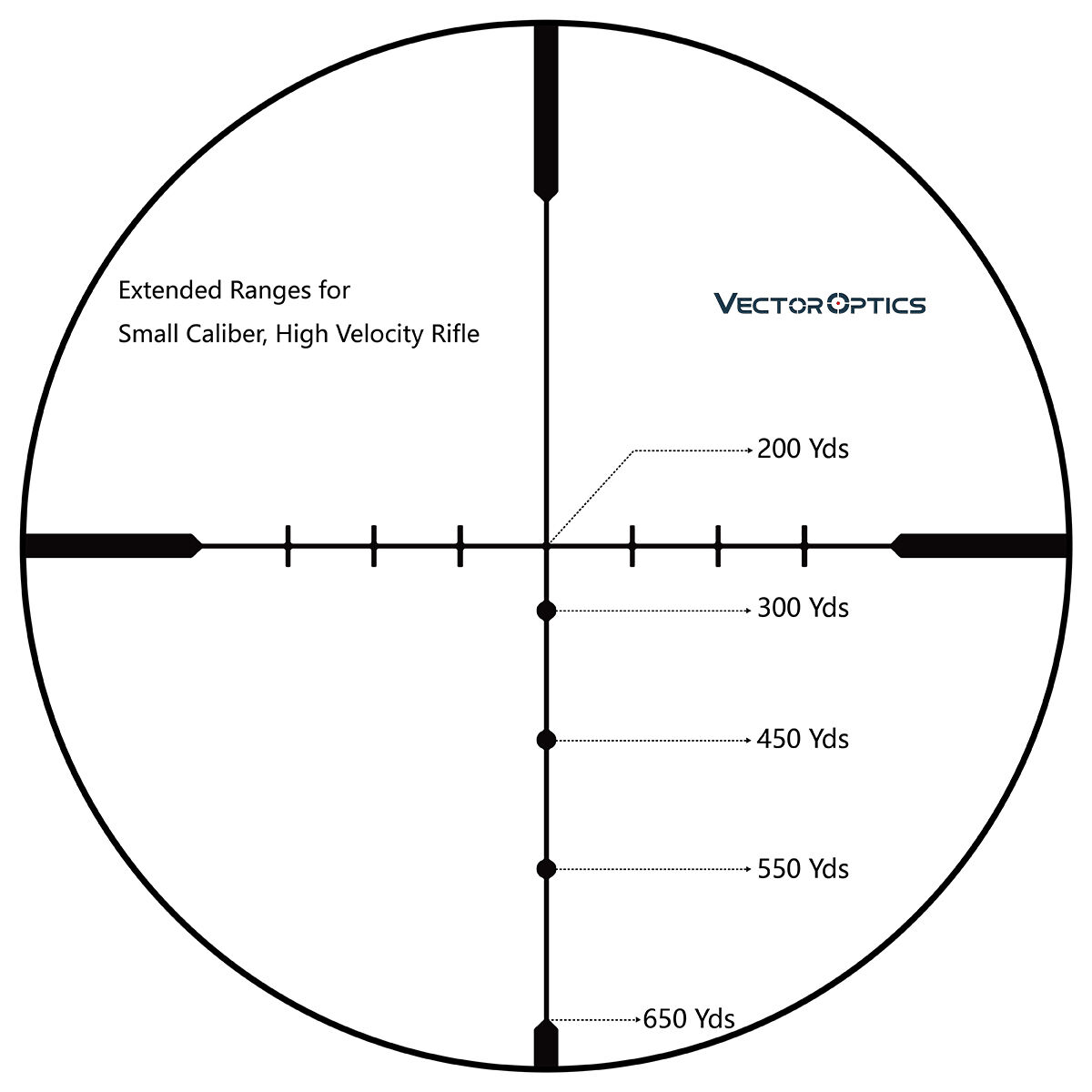

  • BDC & ranging Reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range
  • Distance between objective lens part and middle turret: 59mm (2.3 inch)
  • Length of middle turret part: 37mm (1.5 inch)
  • Distance between middle turret part to power ring: 57mm (2.2 inch)
  • Side focus marks: 10, 15, 25, 50, 100, 200, 500 and infinite yds
  • Shock tested to 750g and water proof
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)

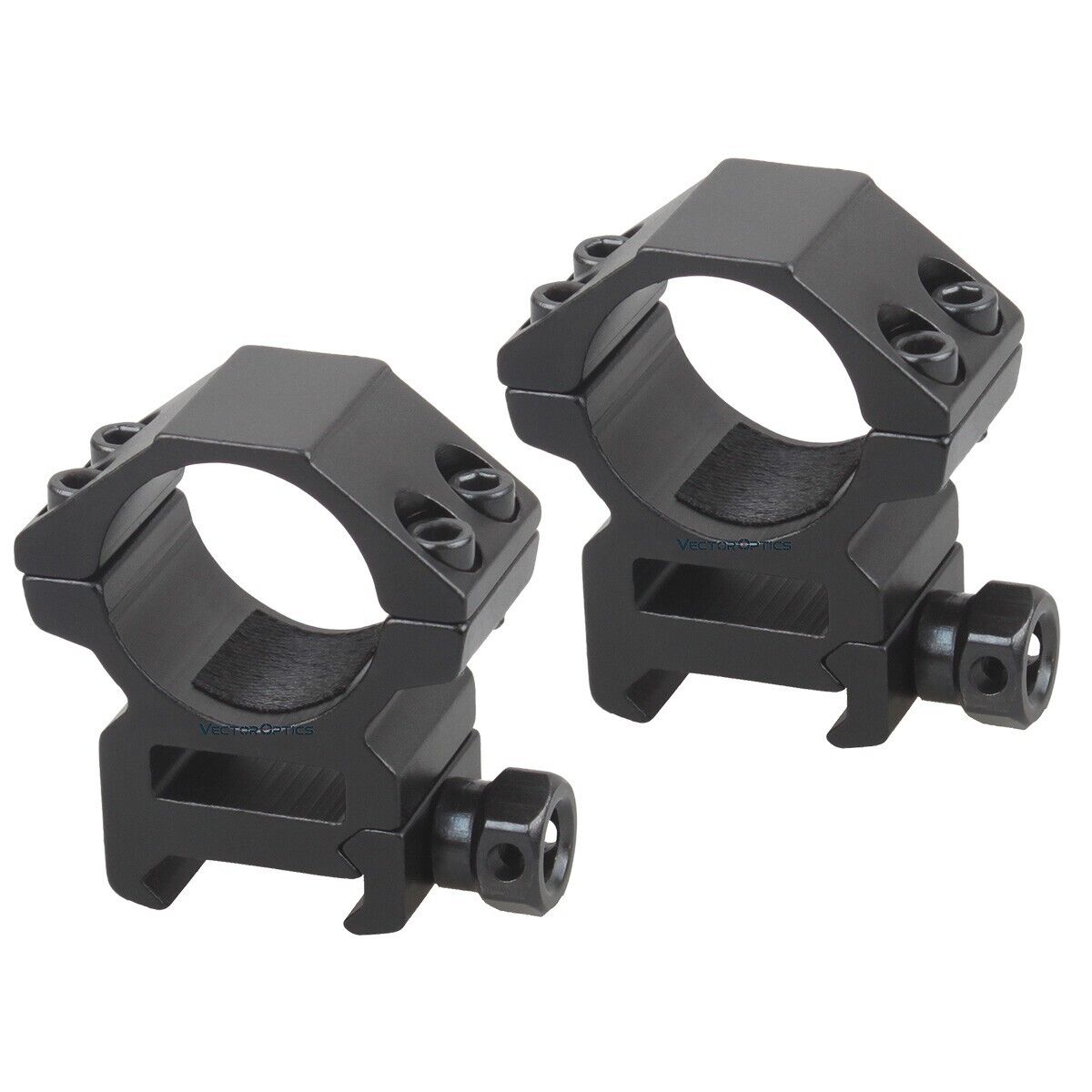

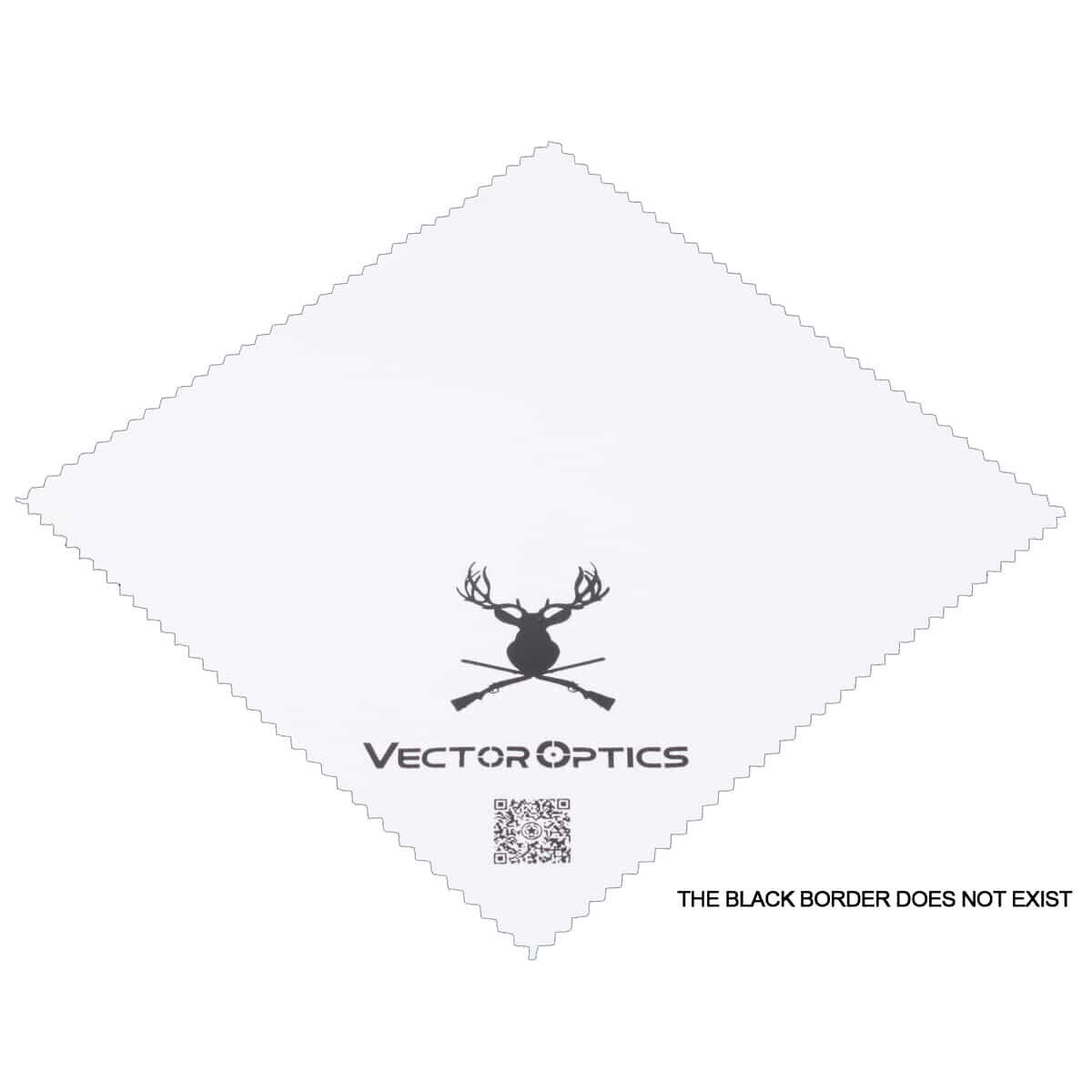

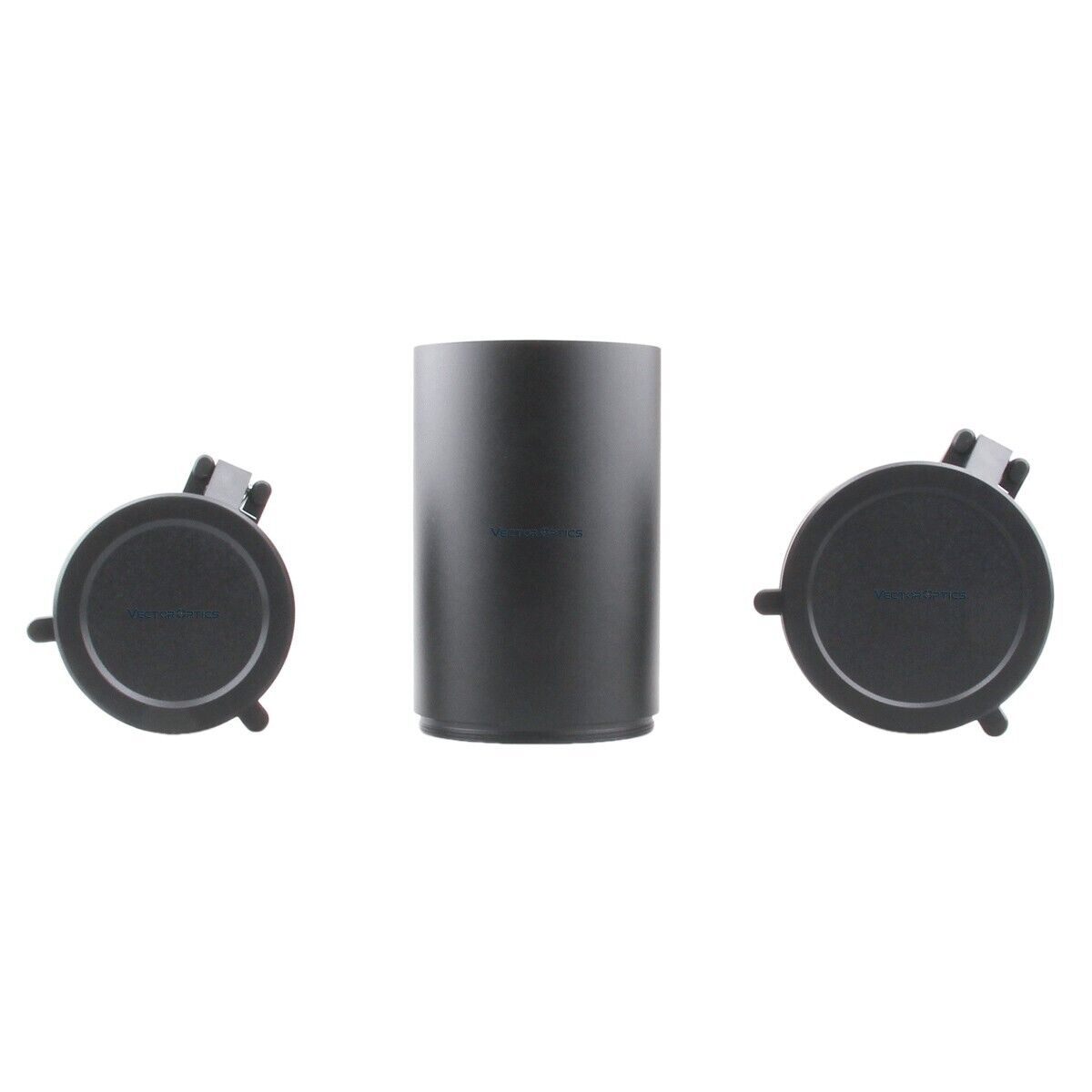

  • Accessories included: weaver rings (default) or dovetail rings, flip-up caps, sunshade and cleaning cloth etc
SKU VO-SCOL-29
Brand Vector Optics
