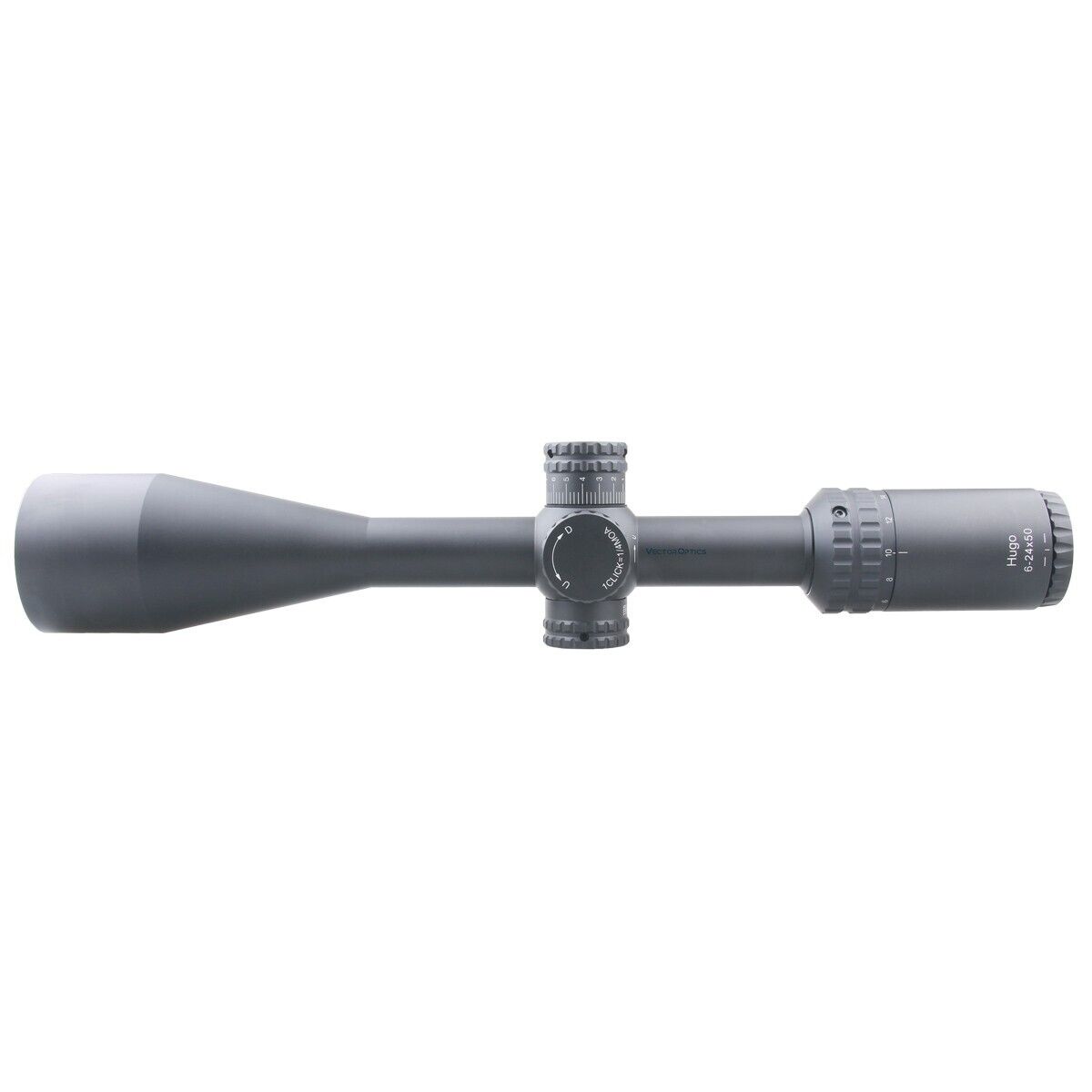

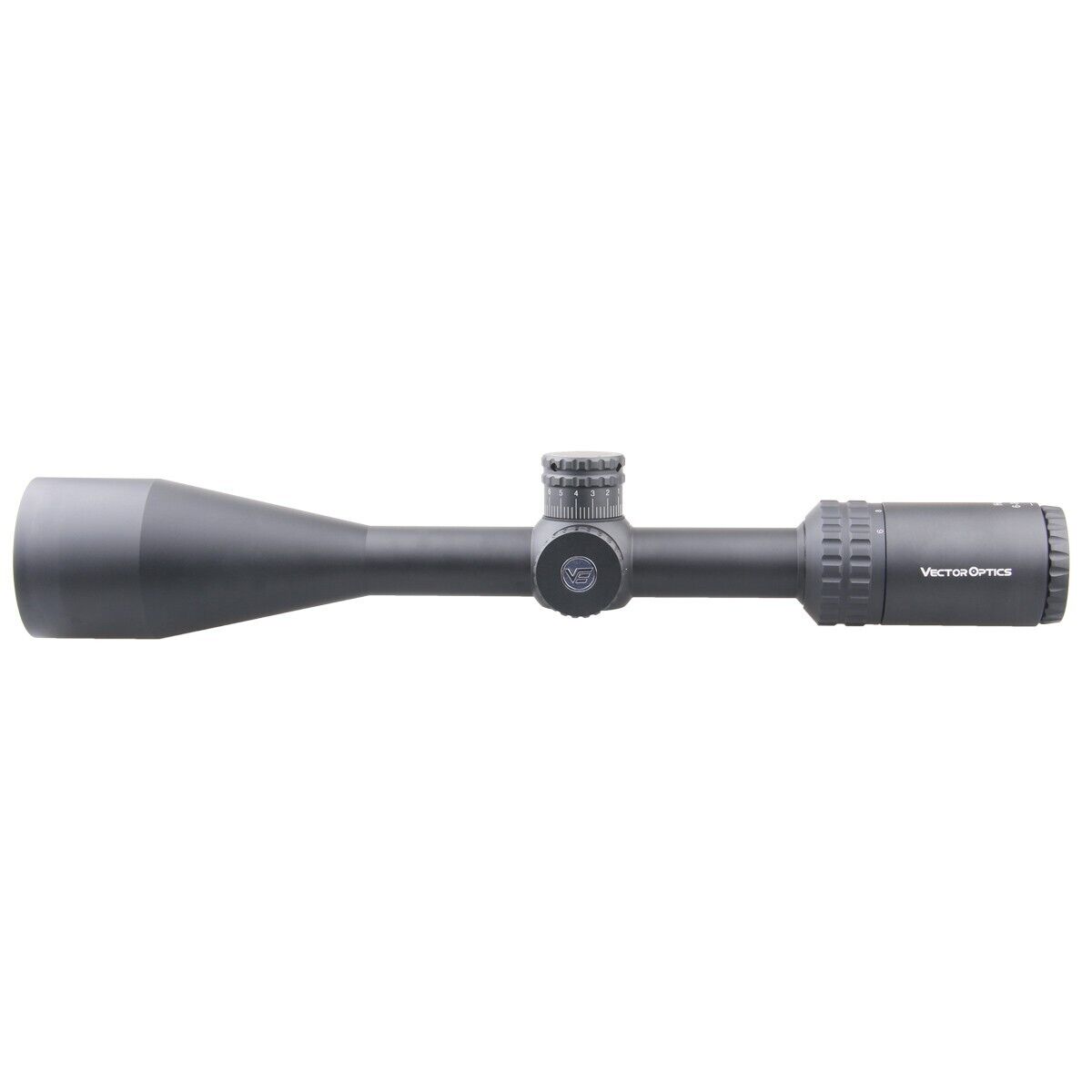

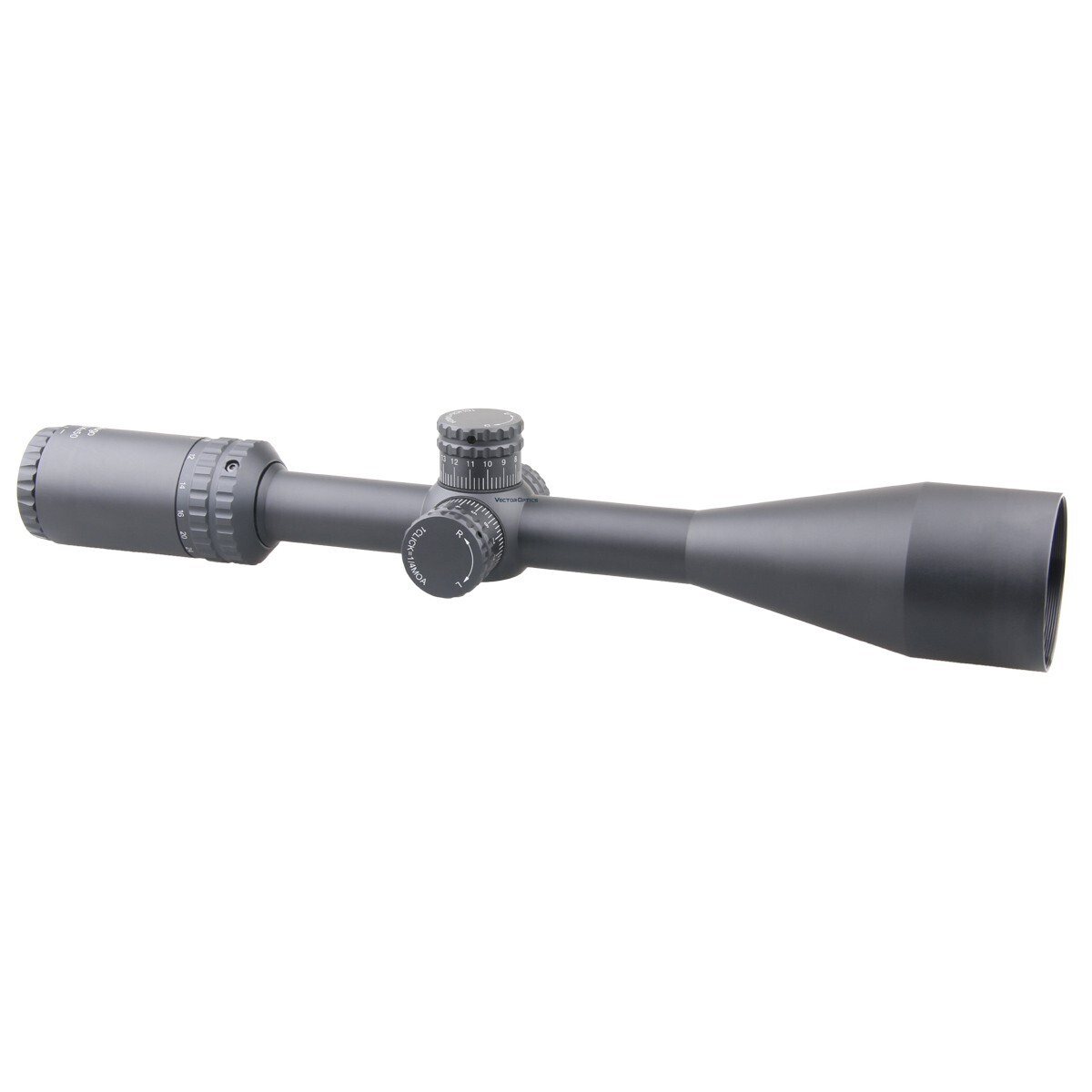

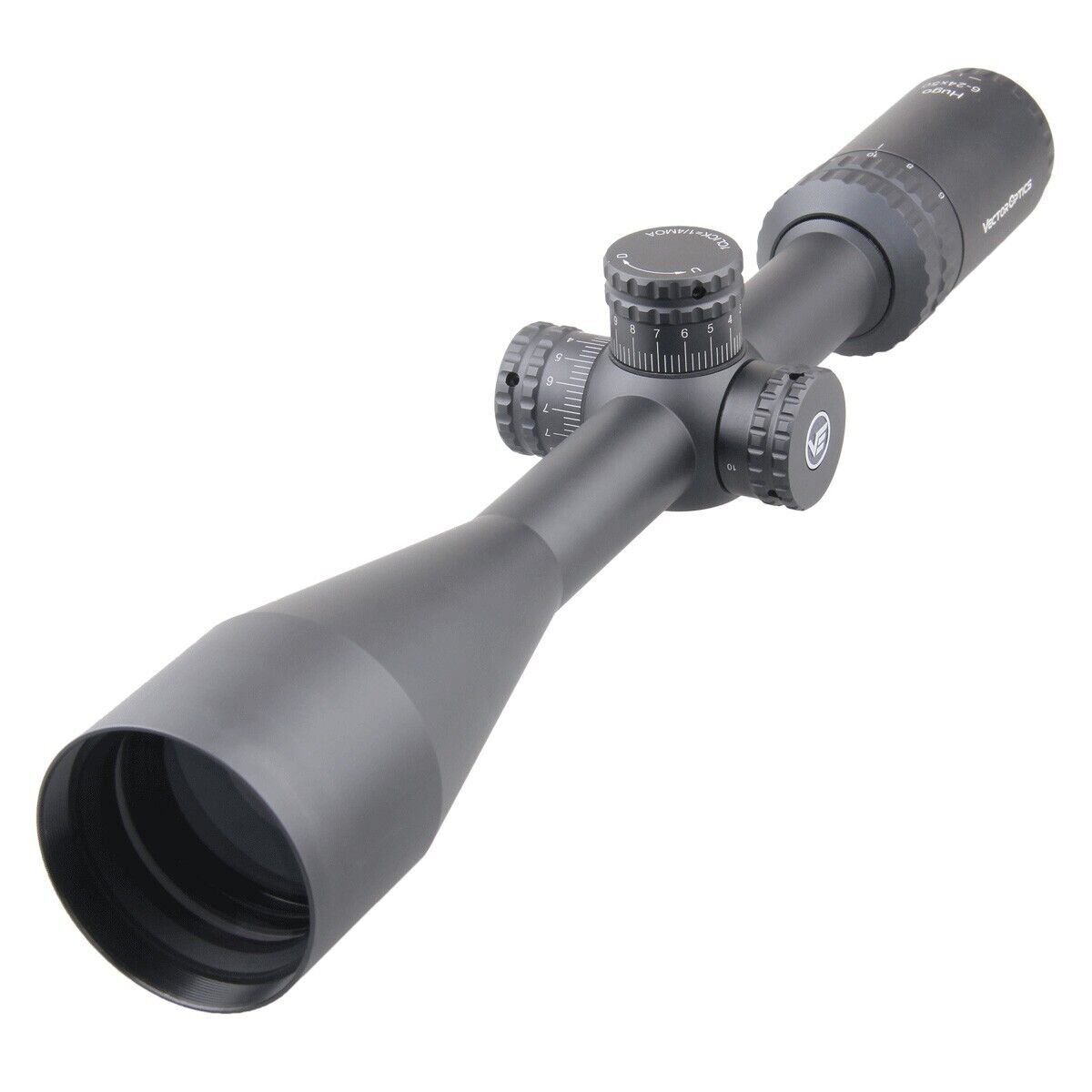

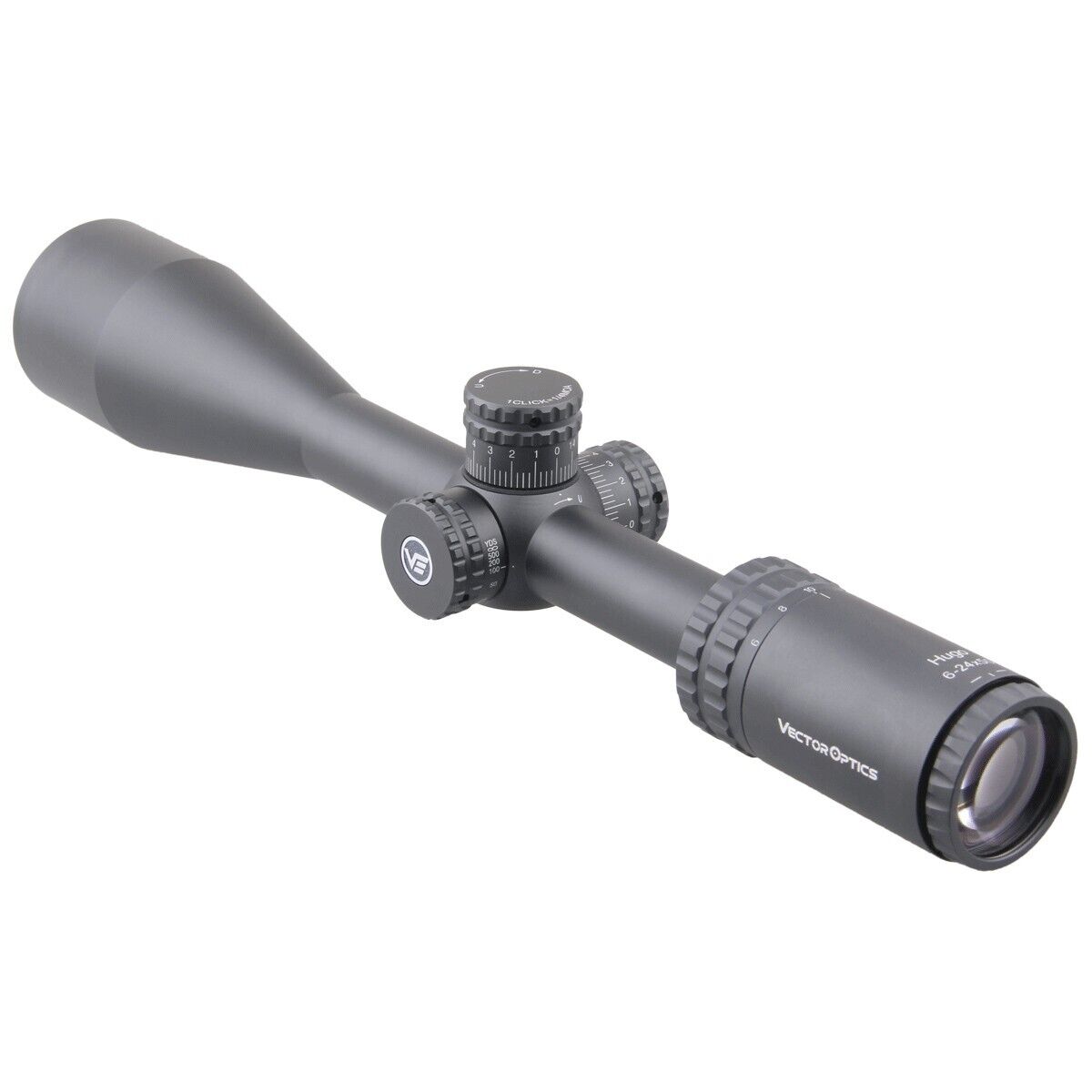

Vector Optics Hugo 6-24x50

VO Hugo Acom Diagram 1



  • Magnification: 6-24x
  • Objective Lens Dia.: 50mm
  • Ocular Lens Dia.: 38mm / 1.5 inch
  • Ocular Lens Length: 60mm / 2.4 inch
  • Exit Pupil: 8.3-2mm
  • Optics Coating: Fully-multi coat
  • Field of View: 15.8-4.0 feet@100 yds
  • Eye Relief: 105--100mm / 4.1-3.9 inch
  • Length: 360mm / 14.2 inch
  • Weight: 660g / 23.3 ounce
  • Tube Dia.: 25.4mm 1“ Monotube

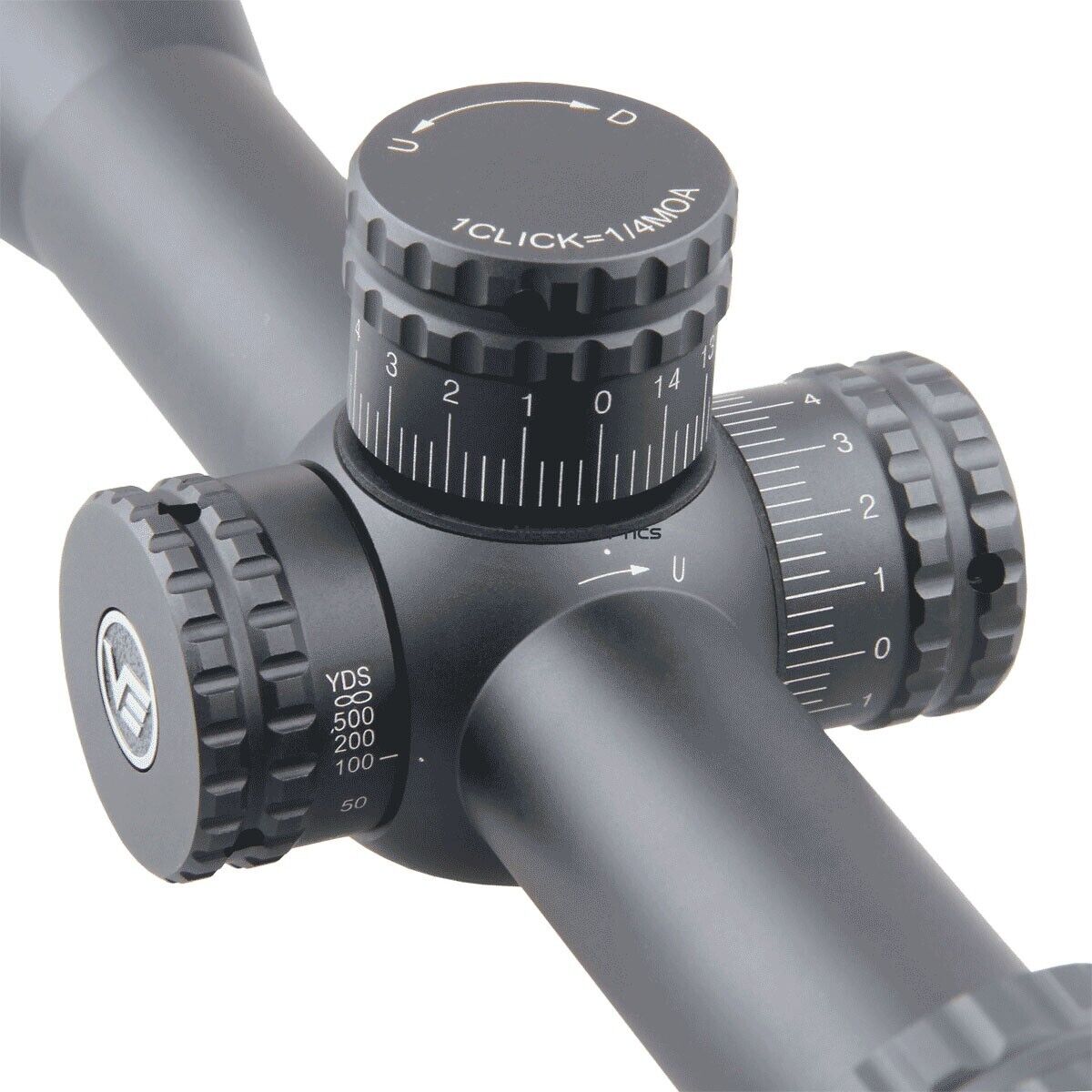

  • Click Value: 1/4 MOA
  • Elevation Range: 40MOA
  • Windage Range: 40MOA
  • Parallax Setting: 10 yards to infinite

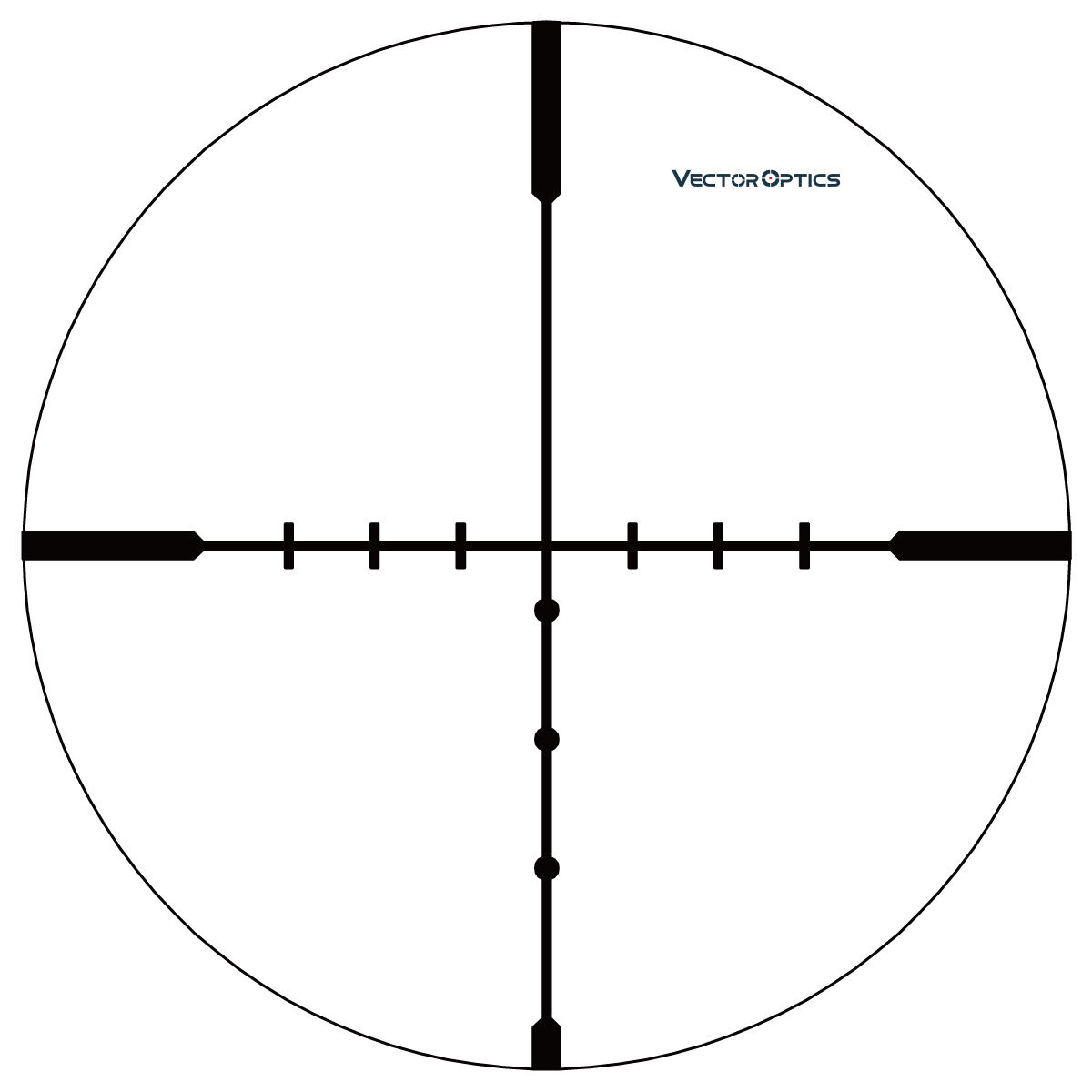

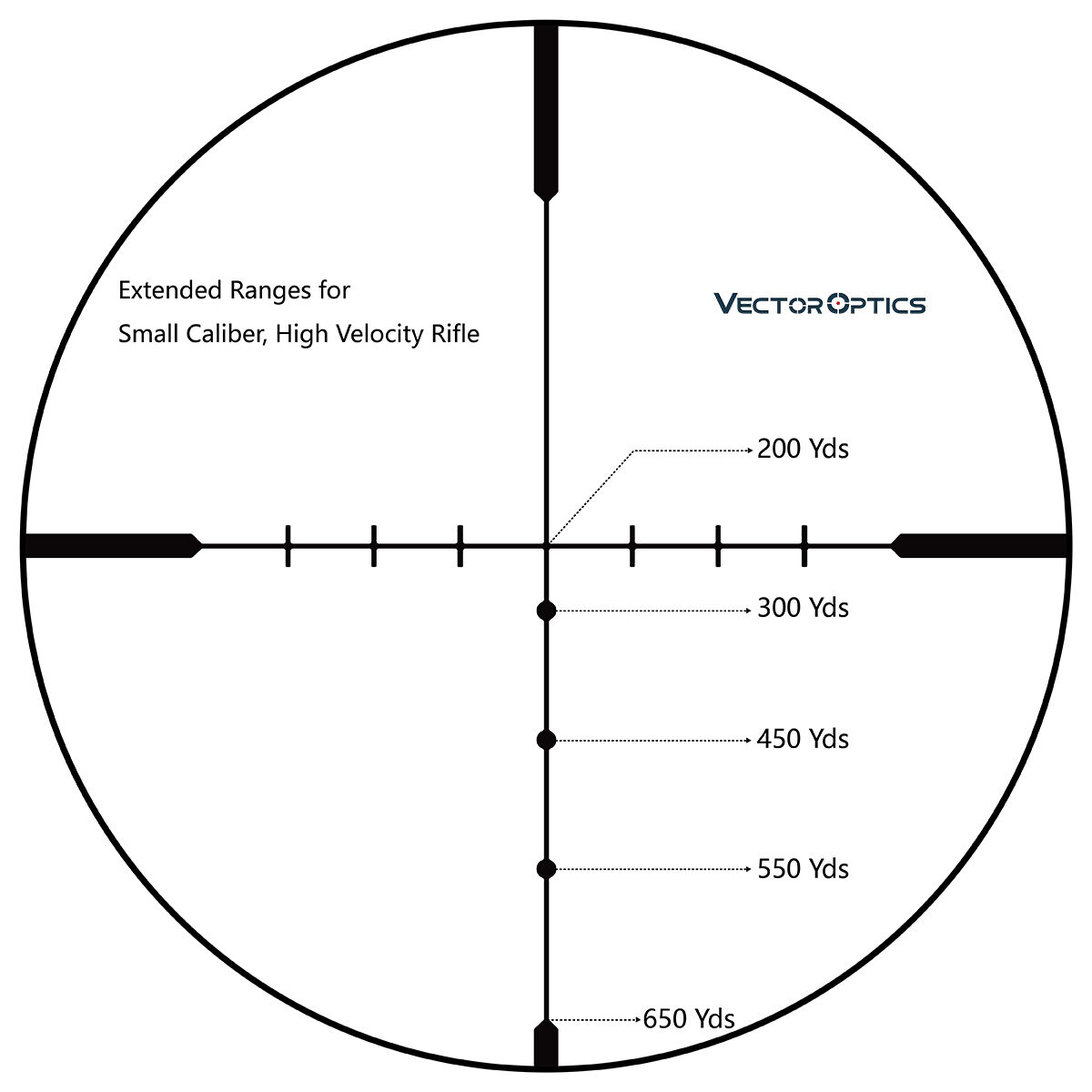

  • Reticle: VOW-10BDC
  • Illumination: None

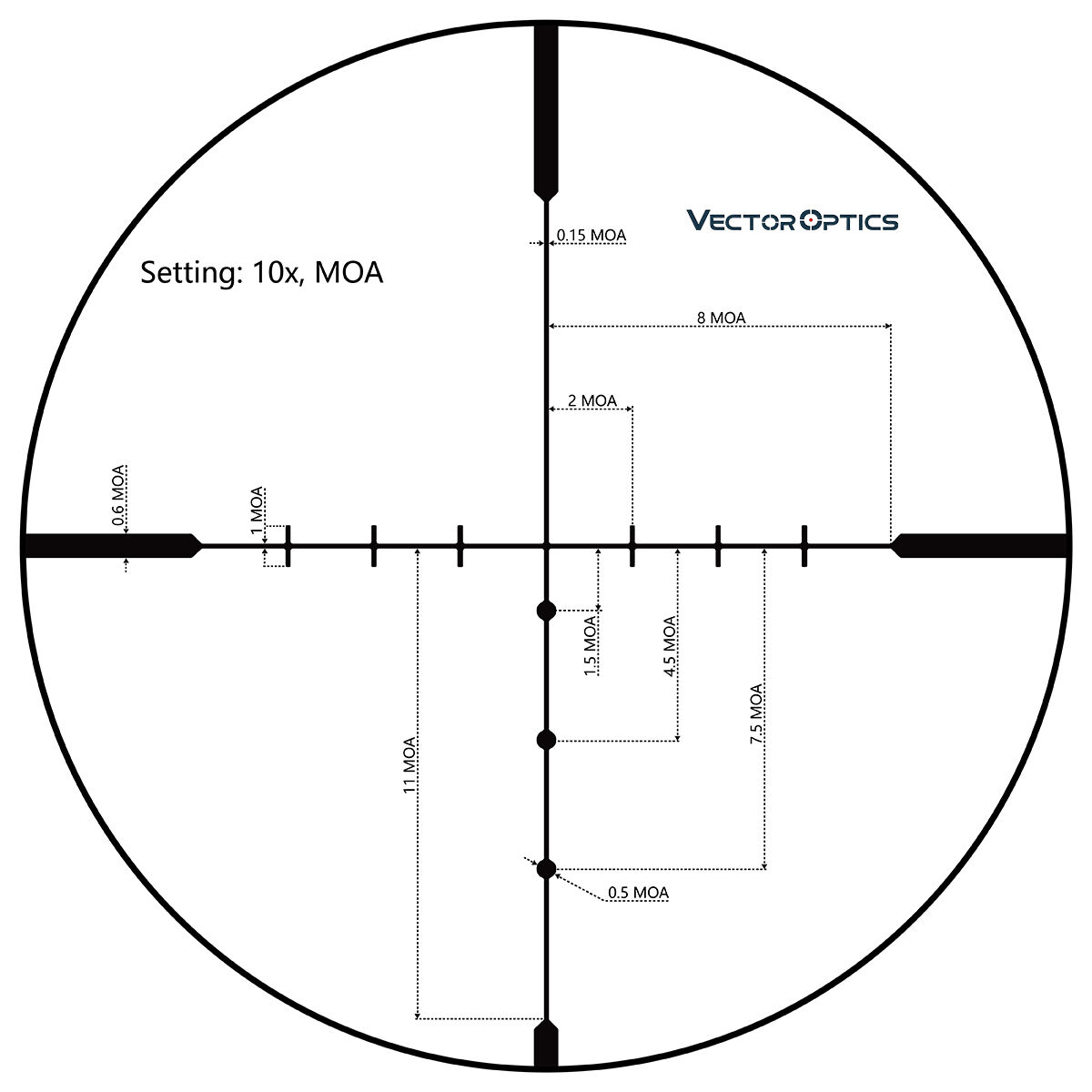

  • BDC & ranging reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range
  • Distance between objective lens part and middle turret: 58mm (2.3 inch)
  • Length of middle turret part: 37mm (1.5 inch)
  • Distance between middle turret part to power ring: 57mm (2.2 inch)
  • Side focus marks: 10, 15, 25, 50, 100, 200, 500 and infinite yds
  • Shock tested to 750g and water proof
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)
  •
SKU VO-SCOL-31
Brand Vector Optics
