VECTOR OPTICS

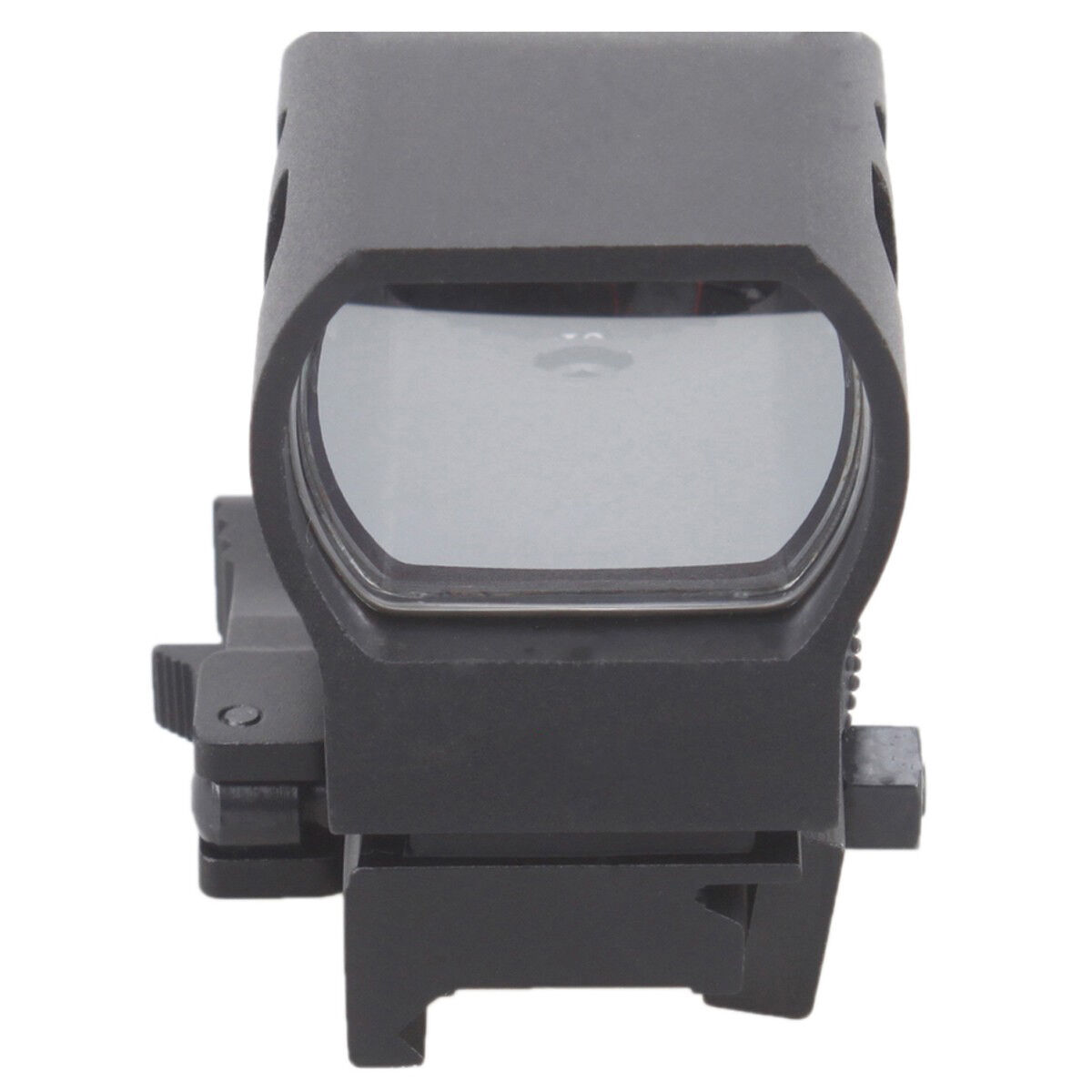

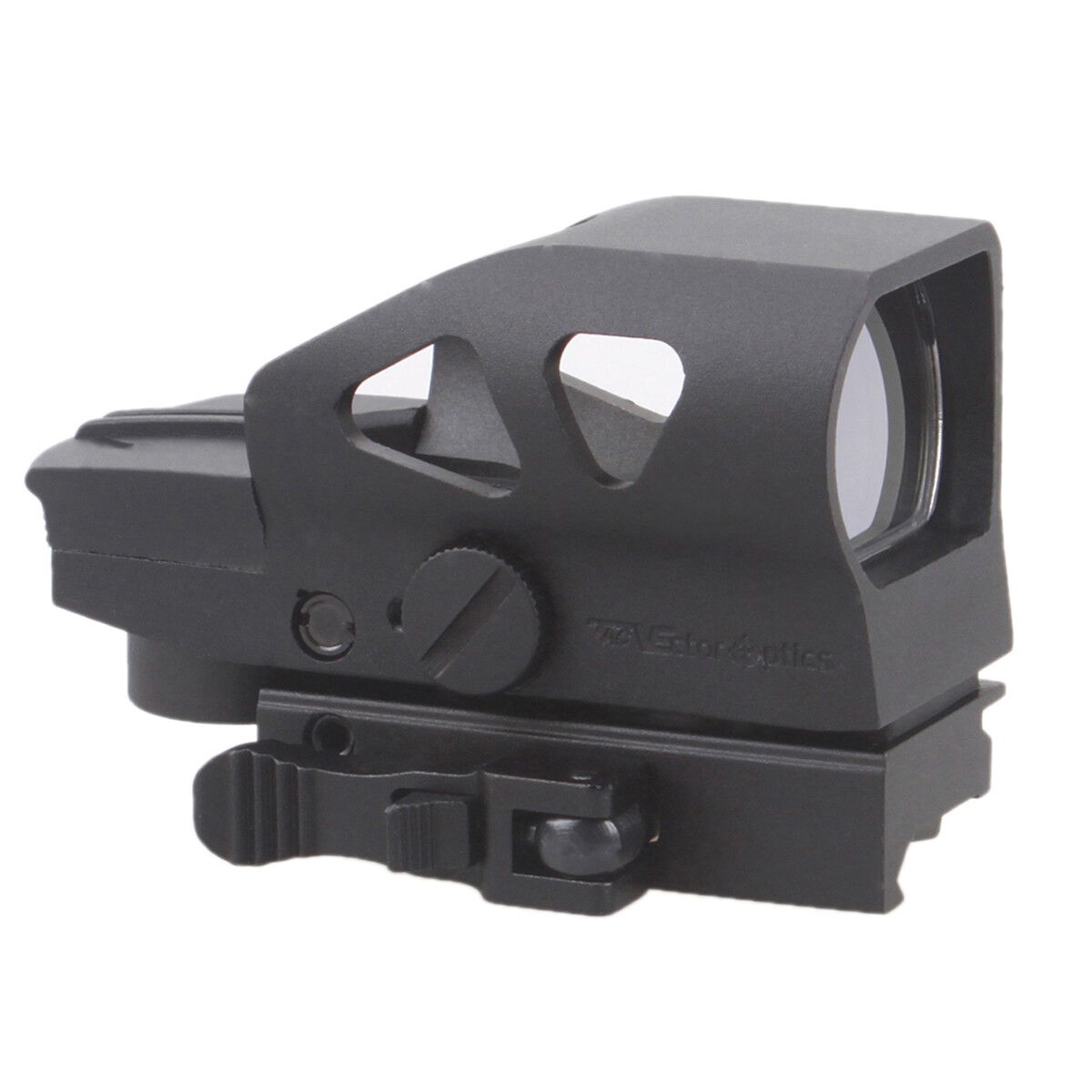

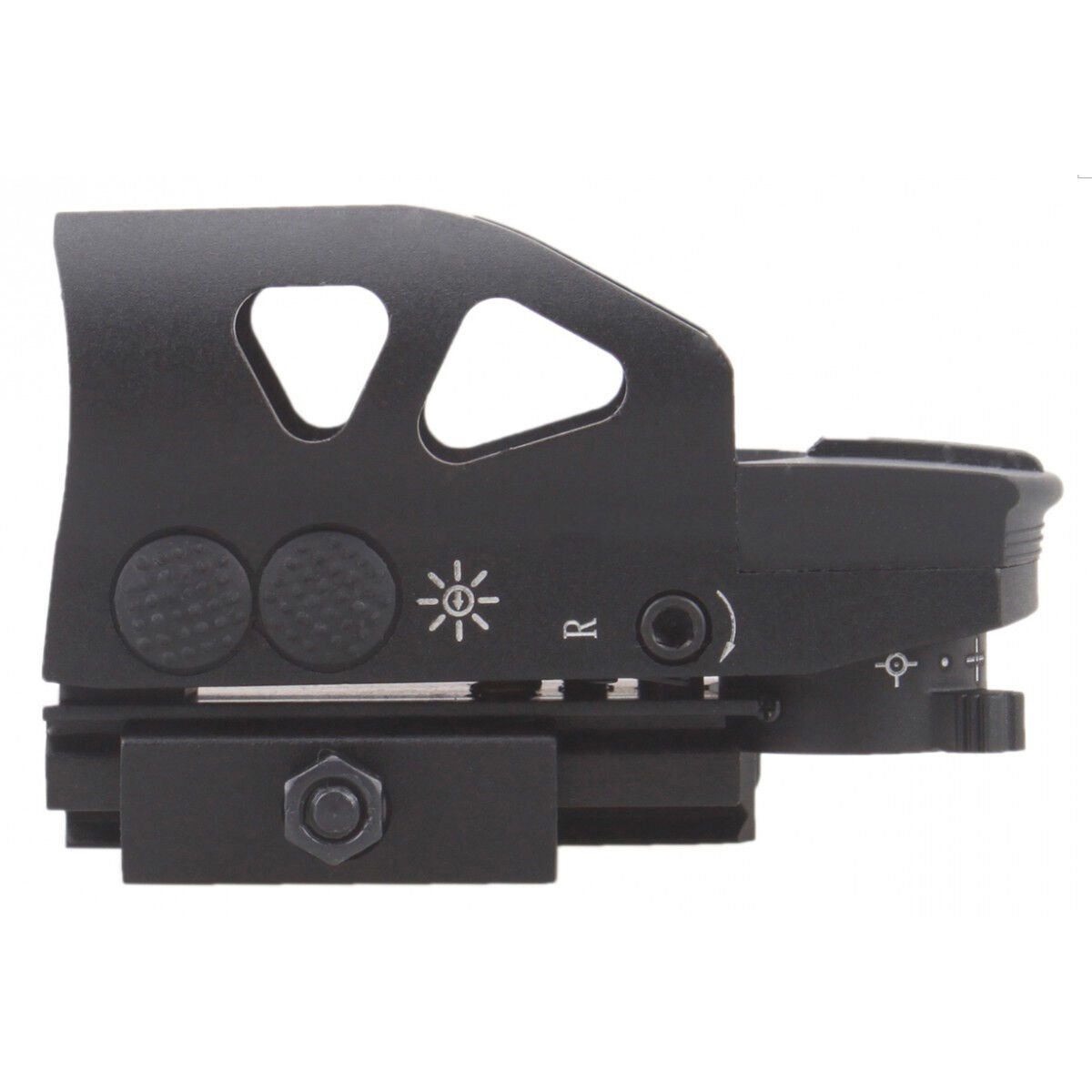

Ratchet Gen 2 1x23x34 Multi Reflex Sight

Light and Compact, Quick Release 21mm Mount Base, Four Kinds of Reticles

Tactical Style



Specifications

  • Magnification: 1.0x
  • Tubeless Sight Window Lens Size: 23x34mm
  • Exit Pupil: 22-23mm
  • Overall Length: 82mm (3.2 inch)
  • Width (without mount level):30mm (1.2 inch)
  • Height: 48mm (1.9 inch)
  • Weight (net):140g (4.9 ounce)
  • Eye Relief: Free
  • Field of View (M @ 100M):15.7
  • Optics Coating: Multi Coated
  • Brightness levels: 5
  • Parallax: 1 MOA at 80 yards
  • Elevation Range: ±30MOA
  • Windage Range: ±30MOA
  • Front switch for red color reticle and rear switch for green color reticle
  • Reticle: Four kinds of reticles; Reticle exchange with audible click
  • Feature 1 M.O.A (50 Yards) windage and elevation
  • Shock proof, Rain Proof and Fog Proof
  • 5 levels brightness for green and red color. Push 3 seconds to shut down the sight.
  • High quality aluminum alloy in durable black matte finish
  • With reticle lock feature
  • Integrated 21mm weaver quick release mount
  •
  • To exchange battery:
  • Use coin to loosen the cap
  • Take out the used battery
  • Exchange with 3 new pcs of LR754 button batteries
  • Refasten the cap again
  • Includes: Two hex keys and cleaning cloth
SKU VO-SCRD-23S
Brand Vector Optics
